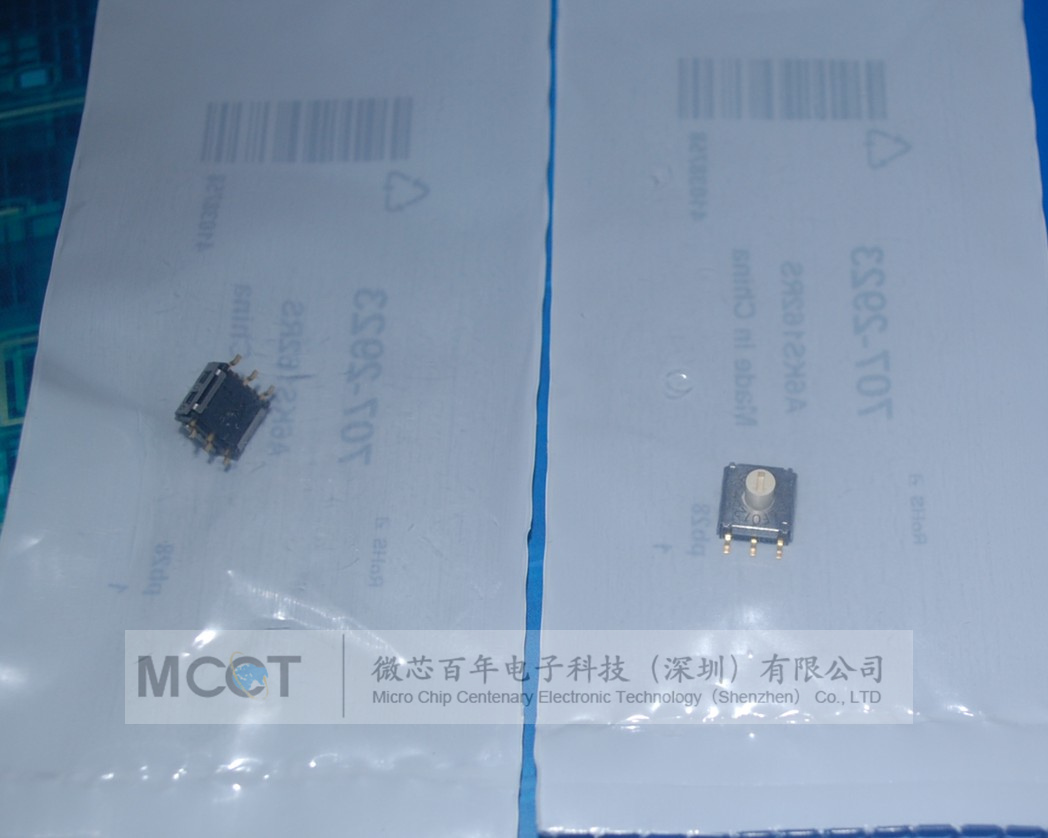

A6KS-162RS
Product images are for illustrative purposes only
Product details are welcome upon request

A6KS-162RS

  • Category:Bus switch
  • Product Name:Small (□7.2mm) rotary toggle switch
  • Manufacturers:OMRON
  • Production Batch Number:10+
  • Encapsulation:DIP
  • Stock Status:There is stock
  • Stock Quantity:8000
  • Minimum order quantity: 1
  • Details:Click here to find pdf information on the A6KS-162RS
  • Click Request a quote
Contact usOnline customer service1 Online customer service2 Click Send email
  • Product introduction



Small (□ 7.2mm)
Rotary toggleswitch


  Omron toggle switchThe A6K features are as follows
● Switch part shape□ 7.2mm size design,
Compared with conventional products, □ 10 mm and the area ratio is reduced by 1/2.
● There are two types of models with surface-mount terminals and in-line terminals.
Side-operated products are also available.
● The contact part is gold-plated to ensure high reliable performance.


class

●Substrate hole insertion terminal type (3×3 terminal type)

  type
(rotor color)

Number of locations Fixed rod mounting
Packaging unit		 Output code
Top operation flat (white) Upper operating shaft type (white) Side operation flat (white) Side operated shaft type (white)
10 Above: 63
Sides: 60		 Live code A6K-102RF A6K-102RS A6KV-102RF A6KV-102RS
16 A6K-162RF A6K-162RS A6KV-162RF A6KV-162RS

●Substrate hole insertion terminal type (5×2 terminal type)

  type
(rotor color)

Number of locations Fixed rod mounting
Packaging unit		 Output code
Top operation flat (white) Upper operating shaft type (white) Side operation flat (white) Side operated shaft type (white)
10 Above: 63
Sides: 60		 Live code A6K-104RF A6K-104RS A6KV-104RF A6KV-104RS
16 A6K-164RF A6K-164RS A6KV-164RF A6KV-164RS

●Surface mount type (3× 3 terminal type, fixed rod mount)

  type
(rotor color)

Number of locations Fixed rod mounting
Packaging unit		 Output code
Above operation flat (white) Above operation Shaft type (white)
10 63 Live code A6KS-102RF A6KS-102RS
16 A6KS-162RF A6KS-162RS

*, 3×3 terminal type (SMT) is not a side-operated type

●Surface mount type (5×2 terminal type, fixed rod mount)

  type
(rotor color)

Number of locations Fixed rod mounting
Packaging unit		 Output code
Top operation flat (white) Upper operating shaft type (white) Side operation flat (white) Side operated shaft type (white)
10 Above: 63
Sides: 60		 Live code A6KS-104RF A6KS-104RS A6KSV-104RF A6KSV-104RS
16 A6KS-164RF A6KS-164RS A6KSV-164RF A6KSV-164RS

●Surface mount type (3×3 terminal type, embossed tape mount)

  type
(rotor color)

Number of locations Output code
Above operation flat (white) Above operation Shaft type (white)
Packaging unit Packaging unit
10
Live code 		1450 A6KS-102RF-P 850 A6KS-102RS-P
16 A6KS-162RF-P A6KS-162RS-P

●Surface mount type (5×2 terminal type, embossed tape mount)

Type (rotor color)

Number of locations Output code
Top operation flat (white) Upper operating shaft type (white) Side operation flat (white) Side operated shaft type (white)
Packaging unit Packaging unit Packaging unit Packaging unit
10 Live code 1450 A6KS-104RF-P 850 A6KS-104RS-P 750 A6KSV-104RF-P 750 A6KSV-104RS-P
16 A6KS-164RF-P A6KS-164RS-P A6KSV-164RF-P A6KSV-164RS-P

Note. The order quantity must be an integer multiple of the packaging unit.

top

Rating/Performance

rating
 DC 24V 25mA, DC 3.5V 10μA (minimum current)
Use ambient temperature
 -30~+80°C 60%RH or less (no icing, no condensation)
Use ambient humidity
 35～95%RH（+5～+35℃）
Insulation resistance
 100MΩ or more (DC 250V)
Contact resistance
 200mΩ or less (initial)
Withstand pressure
 AC250V 1min (between terminals)
vibration
Misoperation
 10~55Hz double amplitude 1.5mm
impact
Misoperation
 300m/s2above
Electrical life
 More than 20,000 steps
Operating torque
 1.96×10-2N m or less
weight
 In-line terminal type: Approx. 0.4 g for upper operation, Approx. 0.7 g for side operation
Surface mount type: Upper operation: approx. 0.4g, side operation: approx. 0.4g

top

Overall dimension (unit: mm)

■In-line terminal type
●Above operation type 3×3 terminal type flat type

A6K-102RF
A6K-162RF


●Above operation type 3×3 terminal type shaft type

A6K-102RS
A6K-162RS


●Side operated type 3×3 terminal type Flat type

A6KV-102RF
A6KV-162RF


●Side operated type 3×3 terminal type Shaft type

A6KV-102RS
A6KV-162RS


●Above operation type 5×2 terminal type flat type

A6K-104RF
A6K-164RF


●Above operation type 5×2 terminal type shaft type

A6K-104RS
A6K-164RS


●Side operation type 5×2 terminal type Flat type

A6KV-104RF
A6KV-164RF


●Side operation type 5×2 terminal type Shaft type

A6KV-104RS
A6KV-164RS



■Surface mount type

●Above operation type 3×3 terminal type flat type

A6KS-102RF
A6KS-162RF


●Above operation type 3×3 terminal type shaft type

A6KS-102RS
A6KS-162RS


●Above operation type 5×2 terminal type flat type

A6KS-104RF
A6KS-164RF


●Above operation type 5×2 terminal type shaft type

A6KS-104RS
A6KS-164RS


●Above operation type 5×2 terminal type flat type

A6KSV-104RF
A6KSV-164RF


●Above operation type 5×2 terminal type shaft type

A6KSV-104RS
A6KSV-164RS



■Printing substrate processing size (TOP VIEW) (unit: mm)

●3×3 terminal type

In-line terminal (operated above)
In-line terminal (operated above)
Surface mount terminals (operated above)

●5×2 terminal type

In-line terminal (operated above)
In-line terminals (side operated)
Surface mount terminals (operated above)
Surface mount terminals (side operated)
