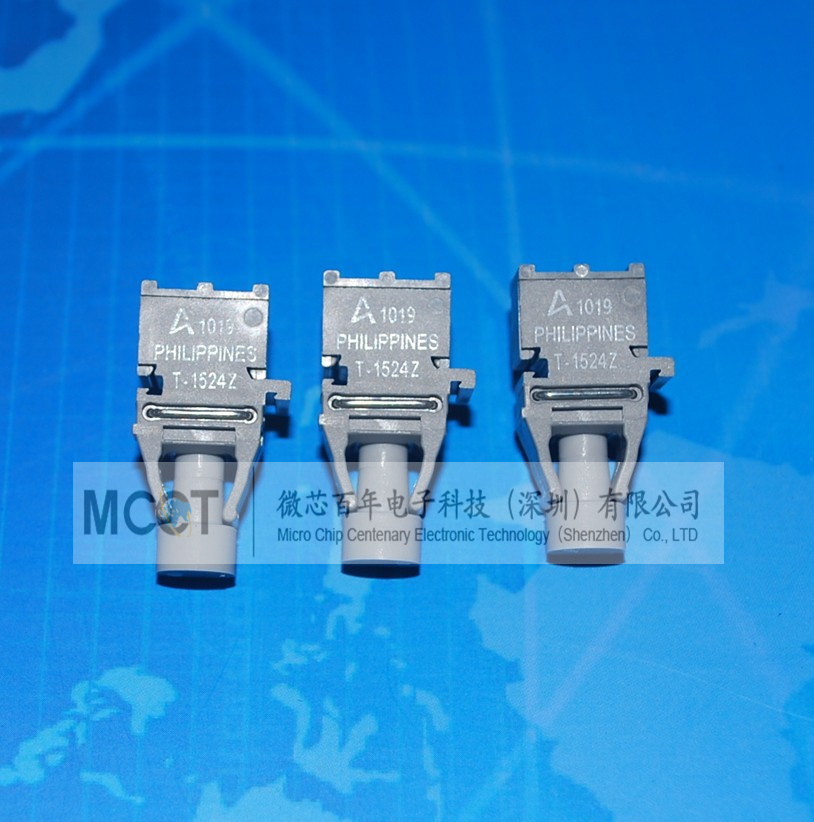

T-1524Z
Product images are for illustrative purposes only
Product details are welcome upon request

T-1524Z

  • Category:Miniature photoelectric sensor
  • Product Name:Fiber optic transmitter
  • Manufacturers:AVAGO: Agilent
  • Production Batch Number:10+
  • Encapsulation:Fiber optic transmitter
  • Stock Status:There is stock
  • Stock Quantity:5000
  • Minimum order quantity: 1
  • Details:Click here to find pdf information on the T-1524Z
  • Click Request a quote
Contact usOnline customer service1 Online customer service2 Click Send email
  • Product introduction

  Model; HFBR-1524Z

Manufacturer: Avago Technologies

Product Category: Fiber optic transmitters, receivers, transceivers

RoHS: Yes

Product: Transmitter

Used for: Plastic Optical Fiber

Data rate: 5 MBd

Wavelength: 660 nm

Diode capacitance: 86 pF

Maximum rise time: 80 ns

Maximum fall time: 40 ns

Pulse width distortion: 30 ns

Maximum output current: 5.1 mA

Operating supply voltage: 7 VDC

Maximum operating temperature: 85 C

Minimum operating temperature: - 40 C

Package: Tube

Function: Ideal for solving problems with voltage isolation/insulation, EMI/RFI immunity or data security.



Original HFBR-1524Z Special price HFBR-1524Z Imported HFBR-1524Z

andT-1524ZRelated ICs are:


Model Manufacturers lot number encapsulation illustrate
T1524Z Avago 09+10+   Fiber optic transmitter
HFBR-1524Z AVAGO 10+ SOPDIP 1MBd standard link transmitter for industrial applications
T-1524Z AVAGO: Agilent 10+ Fiber optic transmitter Fiber optic transmitter
