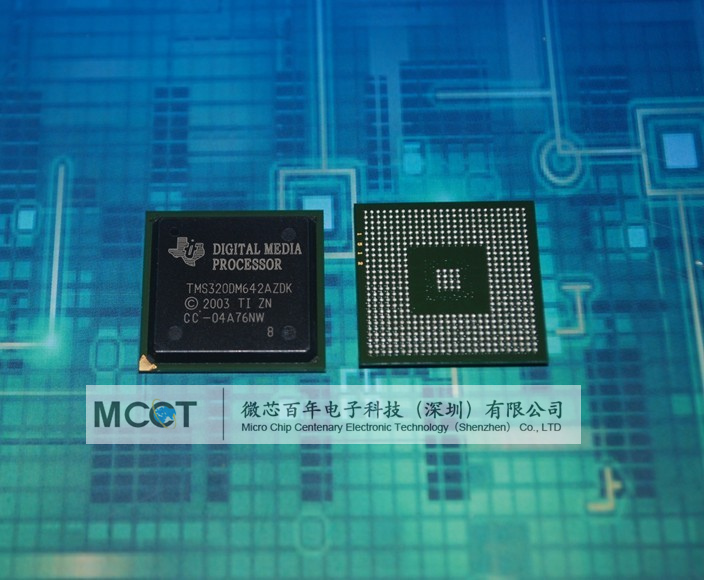

TMS320DM642AZDK

The TMS320C64x™DSP (including the TMS320DM642 appliance) is the highest performance fixed-point DSP generation on the TMS320C6000™DSP platform. The TMS320DM642 (DM642) device is based on the second generation of high-performance, advanced VelociTI Very Long Instruction Word (VLIW) architecture (VelociTI.2™™) developed by Texas Instruments, making these DSPs an excellent first choice for digital media applications. The C64x™ is a member of the C6000™DSP platform code compatible.

With a clock rate of 720 MHz and millions of instructions per second (MIPS) performance, the DM642 device provides a cost-effective solution to the programming challenges of high-performance DSPs. The DM642's DSP provides high-speed controller service flexibility and array processor numerical capabilities.

View the full description of the datasheet

peculiarity

• High Performance Digital Media Processor (TMS320DM642)
  • 2-, 1.67, 1.39 ns instruction cycle time
  • Clock rates of 500 - 600 - 720 MHz
  • 8 x 32-bit instructions/cycle
  • 4000，4800，5760 MIPS
  • Fully software compatible with the C64x™
• VelociTI.2™ extends the TMS320C64x™DSP core of VelociTI™ Advanced Very Long Instruction Word VLIW
  • VelociTI.2™ expands 8 highly independent functional units:
    • The ALU (32-/40-Bit) supports single 32-bit, dual-channel 16-bit, or quad 8-bit, arithmetic per clock cycle
    • Two multipliers support four 16-× 16-bit multiplications (32-bit results) per clock cycle or eight 8-× 8-bit multiplications (16-bit results) per clock cycle
  • Load storage architecture, which supports nonalignment
  • 64 32-bit general-purpose registers
  • Reduce the wrapper instruction code size
  • All directive conditions
• Instruction set features
  • Byte addressing (8-/16-/32-/64-bit data)
  • 8-bit overflow protection
  • Bit field extraction, setting, clearing
  • Normalization, saturation, bit count
  • VelociTI.2™ adds orthogonality
