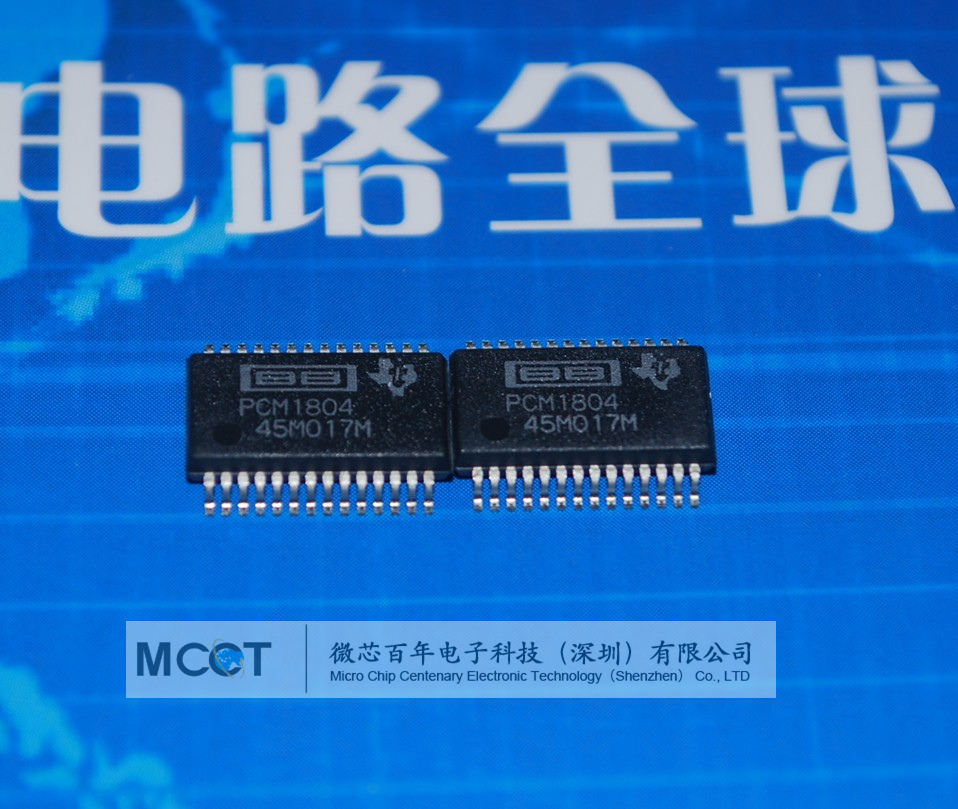

The PCM1804 is a high-performance, monolithic stereo A/D converter with a fully differential analog input voltage. A precision PCM1804Δ-Σ modulator is used and a linear phase digital antialiasing filter and high-pass filter (HPF) are included to eliminate dc offset input signals. The PCM1804 is suitable for a wide variety of mid-to-high-end consumer and professional applications, where excellent performance and operation with a 5 V analog supply and a 3.3 V digital supply are required. Both PCM and DSD audio formats can be implemented with PCM1804 due to the precision of Δ-Σ modulators. The fabricated PCM1804 uses an advanced CMOS process in a small 28-pin SSOP package.

characteristic

• 24-bit delta-sigma stereo A/D converter
• Performance:
  • Dynamic range: 112 dB (typical)
  • SNR: 111 dB (typical)
  • THD + N is: -102 dB (typical)
• High-performance linear phase digital filter anti-aliasing:
  • Passband fluctuation: ±0.005 dB
  • Stop band attenuation: -100 dB
• Fully differential analog input range: ± 2.5 volts
• Audio interface: Master or slave mode optional
• Data format: Left-aligned, I²Seconds, standard 24-bit and drainage services department
• Function:
  • Peak detection
  • High-pass filter (HPF): 1 Hz-3 dB, female_{Quotient S}= 48 kHz
• The sampling rate can reach 192 kHz
• System clock: 128_FS, 256_FS, 384_Fs,
  512_Fs, or 768_Fs
• Dual power supply:
  • 5 V simulation
  • 3.3 V figure
