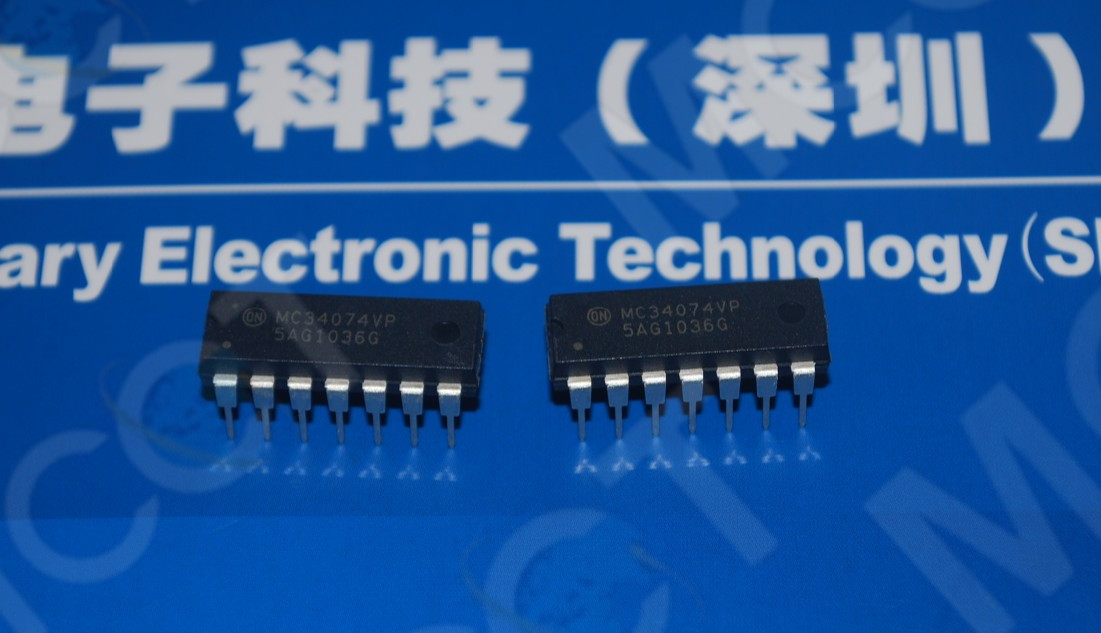

MC34074VP

• Product introduction

 The MC34074VPG is part of the MC34074 series op amp.It has a storage temperature range from -60°C to +150°C and is available in a DIP-14 package.

Quality bipolar manufacturing and innovative design concept using MC34074 series monolithic operational amplifiers. These op amps offer a gain-bandwidth product of 4.5 MHz, a slew rate of 13 V/μs, and fast settling time without the use of JFET device technology.

Product Features:

• Width: 4.5 MHz
•
• High pendulumRate: 13 V/μs
•
• Fast Settling Time: 1.1μs to 0.1%
•
• Wide single-supply operation: 3.0 V to 44 V
•
• Wide input common-mode voltage range including ground (VEE)
•
• Low input offset voltage: 3.0 mV maximum (A suffix)
•
• Large output voltage swing: -14.7 V to +14 V (±15 V supply)
•
• Large capacity drive capacity: 0 pF to 10,000 pF
•
• Low total harmonic distortion: 0.02%
•
• Excellent phase margin: 60°
•
• Excellent gain margin: 12 dB
•
• Output short-circuit protection
•
• ESD diodes/fixtures are available with dual and quad input protection
•
• The Pb-Free package is available

Scope of application:

• Instrumentation and control
