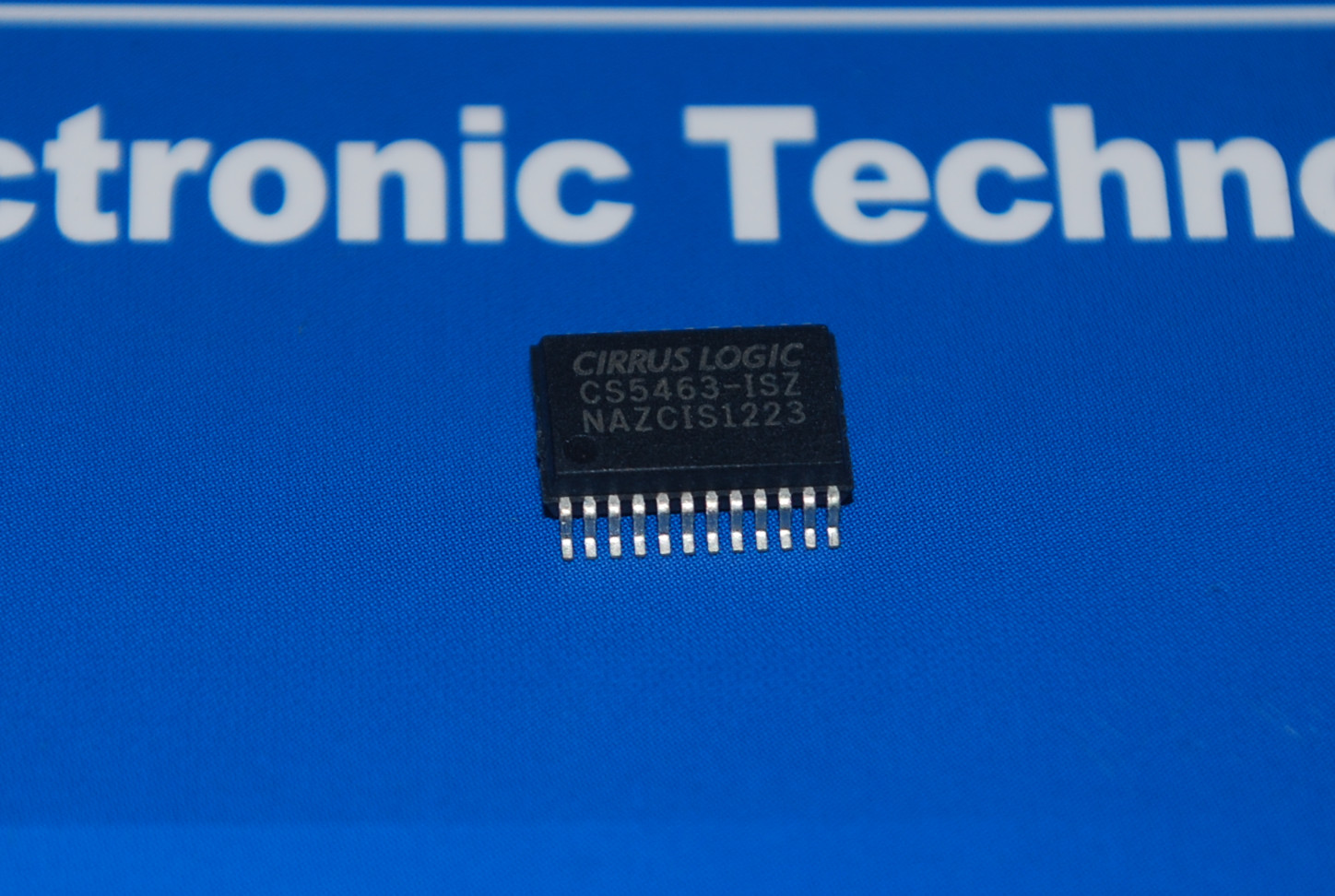

CS5463-ISZ power chip
Factory:Cirrus Logic Inc (Cirrus)
Basic parameters:
Input impedance :30Thousand ohms
Measurement error :0.1%
voltage-High input/Output:0.8V
voltage-Low input/Output:0.2V
current-Power supply:2.9mA
Supply Voltage :4.75 V ~ 5.25 V
Operating Temperature :-40°C~85°C
Installation Type :Surface mount
encapsulation/Enclosure:24-SSOP
Supplier Equipment Package :24-SSOP
Wrap:Pipe fittings
CS5463is an integrated power measurement device that combines two analog-to-digital converters, a power calculation engine, an energy-to-frequency converter and a serial interface on a single chip. Its purpose is to accurately measure instantaneous currents and voltages and make calculationsVRMS，IRMS, instantaneous, apparent power, active power, and reactive power single phase,2 -or3Line energy metering applications.Temperature sensor
