HCPL-2630S
Product images are for illustrative purposes only
Product details are welcome upon request

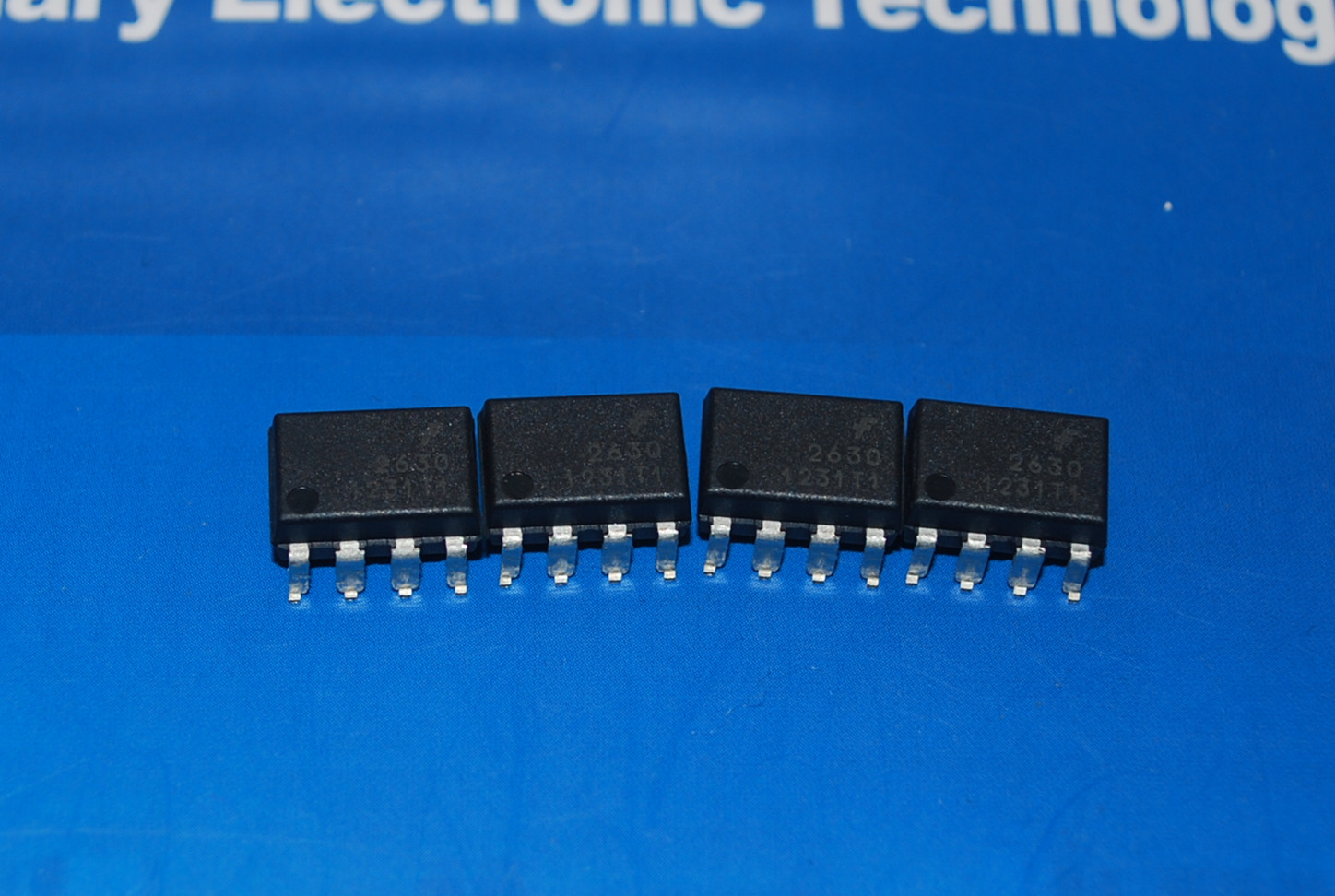

HCPL-2630S

  • Category:Optocoupler
  • Product Name:Brand new original imported high-speed photocoupler
  • Manufacturers:avago
  • Production Batch Number:13+
  • Encapsulation:SOP
  • Stock Status:There is stock
  • Stock Quantity:32030
  • Minimum order quantity: 1
  • Details:Click here to find pdf information on the HCPL-2630S
  • Click Request a quote
Contact usOnline customer service1 Online customer service2 Click Send email
  • Product introduction
The HCPL-2630 photocoupler is an optically coupled gate device that combines GaAsP LEDs with a high-gain light detector with an enable input that allows the detector to be gated and the detector chip output as an open-collector Schottky clamp transistor.
This unique design provides optimal AC and DC circuit isolation and TTL compatibility, and the AC and DC parameters of the photocouplers can be guaranteed in the temperature range of -40°C to 85°C, providing unobstructed system performance.
The HCPL-2630 is suitable for high-speed logic interfaces, input and output buffering, and long-line drivers that cannot withstand environments where traditional long-line drivers cannot withstand and is recommended for use in environments with very high ground or induced noise.
  • High speed: 10MBd typical
  • LSTTL/TTL compatible
  • Low input current of 5mA
  • -40°C to 85°C operating temperature range, AC and DC performance guaranteed
  • Available in 8-pin DIP, SOIC-8, and wide-body packages
  • Strobe output (single channel products only)
  • Safety Specification Certification:
    - UL1577 3,750Vrms/1min
    - CSA
  • Options include:
    - 300 = Gull wing surface mount
    - 500 = tape and reel package
    - xxxE = Pb-free
  •
  • Isolate long-line receivers
  • Computer peripheral interface
  • Microprocessor system interface
  • Analog-to-digital and digital-to-analog conversion digital isolation
  • Switching power supply
  • Instrument input/output isolation
  • Eliminate ground loops
  • Replaces pulse transformers

//www.chip100.com/

andHCPL-2630SRelated ICs are:


Model Manufacturers lot number encapsulation illustrate
HCPL-2630S avago 13+ SOP Brand new original imported high-speed photocoupler
HCPL2630S FSC 13+ DIP Optocoupler
