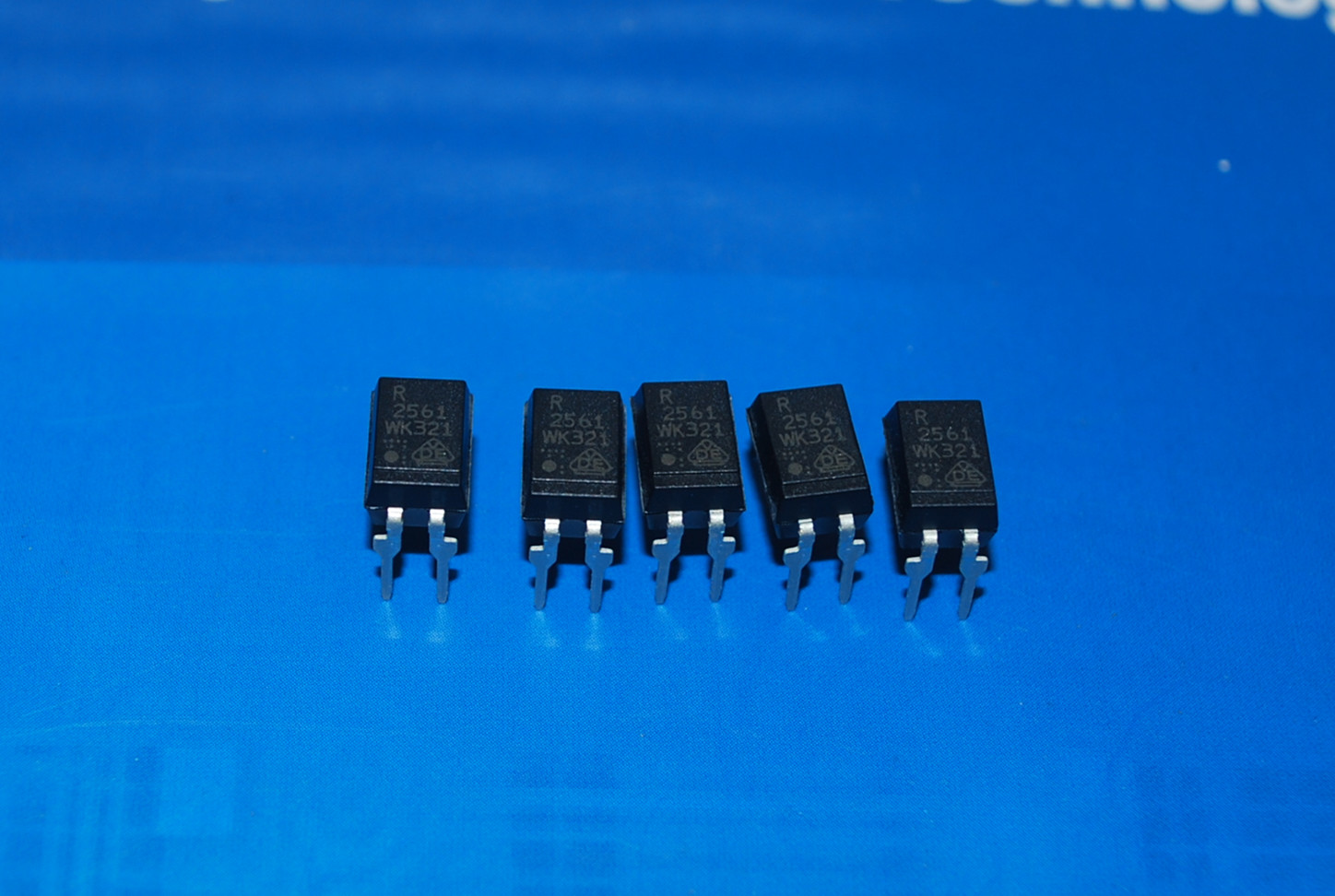

PS2561/PS2561L-1-V photocoupler is produced by NEC factory, using DIP-4 package, batch number 13+, Microchip Centennial IC warehouse is currently in stock
The PS2561-1/PS2561L-1 optocoupled isolators contain a GaAs LED and an NPN-type silicon phototransistor. The PS2561-1 is packaged in a plastic DIP (Dual In-line Package), while the PS2561L-1 is a curved pin (gullwing) package suitable for chip mounting.
PS2561L1-1 has curved pins and long creepage distances.
PS2561L2-1 has curved pins (gullwing type) and long creepage distance, suitable for SMD mounting.
PS2561-1/PS2561L-1 features
• High isolation voltage (BV = 5,000 Vr.m.s.)
• High collector-emitter voltage (VCEO = 80 V)
• High current slew rate (CTR = 200% typical)
• High-speed conversion (tr = 3 μs typical, tf = 5 μs typical)
• Reel and tape order serial number: PS2561L-1-E3, E4, F3, F4,
•PS2561L2-1-E3, E4
•Safety certification ◦UL certification: No.E72422
◦CSA certification: No.CA 101391
◦BSI certification: No. 7112/7420
◦SEMKO certification: No. 303059, 307244
◦NEMKO certification: No.P03200272, P03200747
◦DEMKO certification: No. 312341, 312340
◦FIMKO certification: No.FI 10620, FI 11898
◦DIN EN60747-5-2(VDE0884 Part2) Certification: No.40008862(Option)
PS2561-1/PS2561L-1 app
• Voltage provided
• Telephone/Fax
• FA/OA devices
• Programmable logic controller
