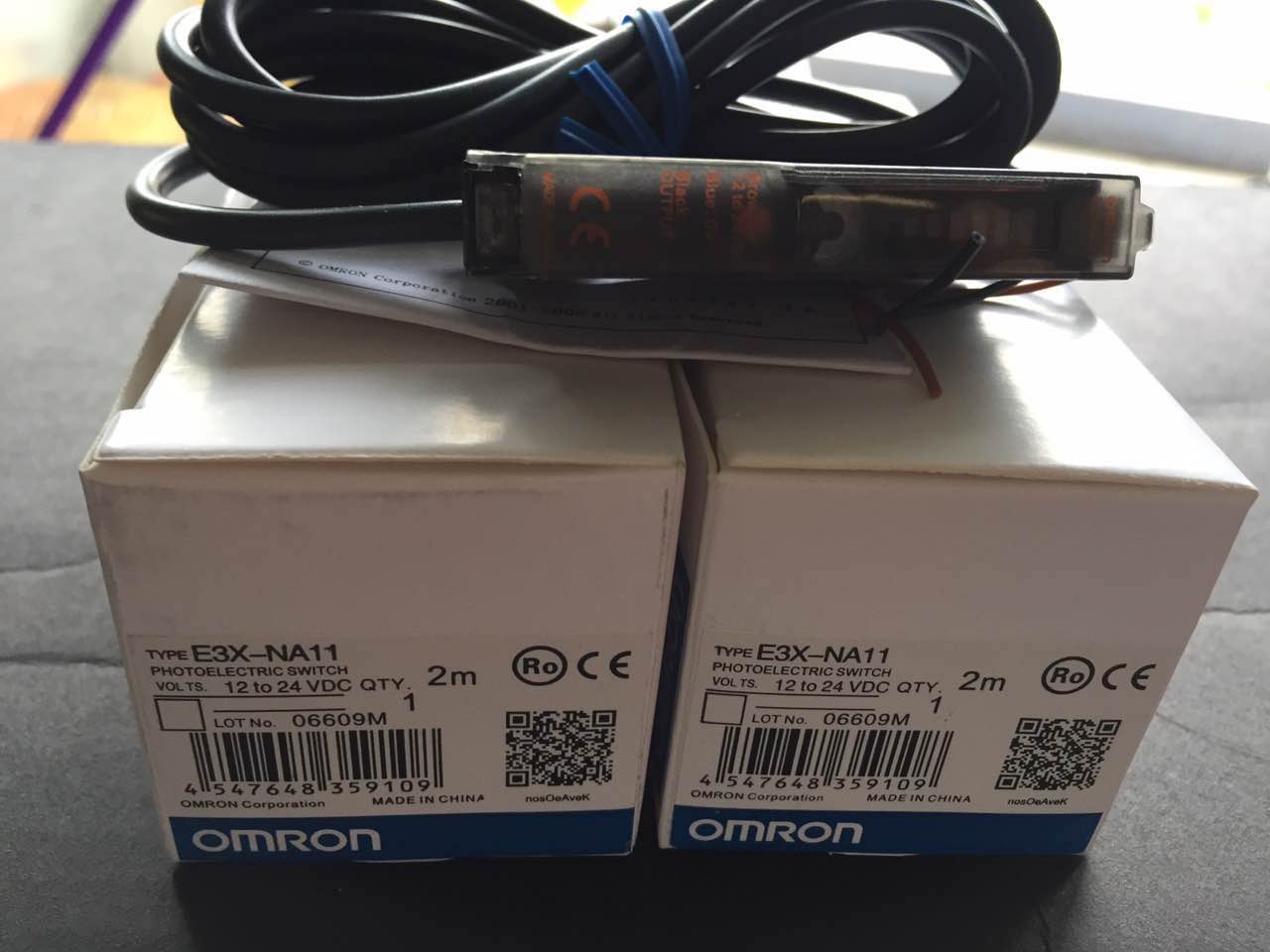

E3X-NA11
Product images are for illustrative purposes only
Product details are welcome upon request

E3X-NA11

  • Category:optical fiber
  • Product Name:Fiber amplifier
  • Manufacturers:Omron
  • Production Batch Number:10+
  • Encapsulation:NA
  • Stock Status:There is stock
  • Stock Quantity:1000
  • Minimum order quantity: 1
  • Details:Click here to find PDF information on E3X-NA11
  • Click Request a quote
Contact usOnline customer service1 Online customer service2 Click Send email
  • Product introduction

E3X-NA11 fiber amplifier

brand newOMRONOmron E3X-A11 fiber amplifier：

type
OMRON fiber amplifiers
Model
E3X-A11
E3X-NA11
Form and size
[W12XH32.8XL65.3mm]
[W12XH32.8XL65.3mm]
Brief introduction to features
Sensitivity is set quickly and automatically by pressing a button/remote sensitivity setting; High-speed response below 0.5 milliseconds, external synchronous input, mutual interference protection, self-diagnosis function; Built-in output overcurrent protection and power reverse connection protection circuit; Built-in delay function (fixed 40ms)
Response time
0.5 ms maximum
Rated power supply
10-24V
Current consumption
40mA maximum
45mA max
Use light sources
Red LED (modulation)
Protection circuits
Reverse polarity protection, short circuit protection
Insulation resistance
20MΩ Min ( 500VDC )
Ambient illumination
Sunlight: 11,000 Lux.Max., fluorescent lamps: 3,000 Lux. Max.
cable
4P, Φ 5mm, length:

andE3X-NA11Related ICs are:


Model Manufacturers lot number encapsulation illustrate
RIKO FT-320 RIKO 10+   Fiber optic line through-beam
E32-DC200 Omron 10+   Fiber optic cable mounting nut 6mm large 2m wire
VLS4012ET-100M TDK 11+ SMD New original inductor
B3F-1060 OMRON 10+ DIP SMD MECHANICAL TACTILE KEYSWITCH
FR-610 RIKO, Taiwan 10+ NA Fiber optic wire FR-610 M6 mounting nut 6mm large
IS61LV25616AL-10LQI ISSI 13+ TQFP44 Data cache chip
E6A2-CS3C Omron 10+ NA Omron encoders
E6B2-CWZ1X Omron 10+ NA Omron encoders
XC9131H05CDR-G TOREX 12+ USP-10B Synchronous rectified boost DC/DC converter
MPZ1608S300A TDK 10+ SMD EMI countermeasure product for power line
