illustrate

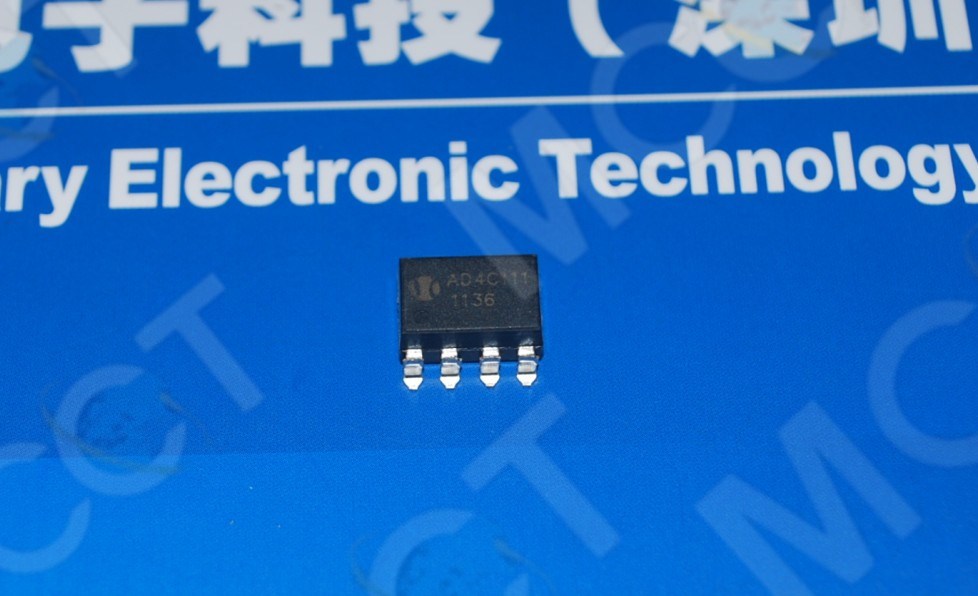

The AD4C111-L is a bidirectional, double-rod, single-throw, normally open multipurpose solid state relay. It is used to replace electromechanical relays in general purpose switching applications. The relay consists of two integrated circuits, each driven by rugged source-to-source DMOS transistor reinforced dual. Each integrated circuit is optocoupled to a light-emitting diode. The output MOS transistor is protected with a freewheeling diode that can handle inrush currents up to 1.5A, making the lamp ideal for switching relays and highly inductive loads.
peculiarity
High input-to-output isolation
Low input control power consumption
110 mA maximum continuous load current
40 ohms maximum on-resistance
Long life / high reliability
Current limit
RoHS compliant / lead-free / REACH compliant
apply
Telecommunications switching
Tip/ring control
PCMCIA module
Multiplexer
Meter reading system
Data acquisition
Medical equipment
Battery monitoring
Home/Security System
Option/Suffix
- H: High output isolation
- S: Surface mount option
- TR: Taping and reels
Brand new original import, spot stock, welcome to inquire
