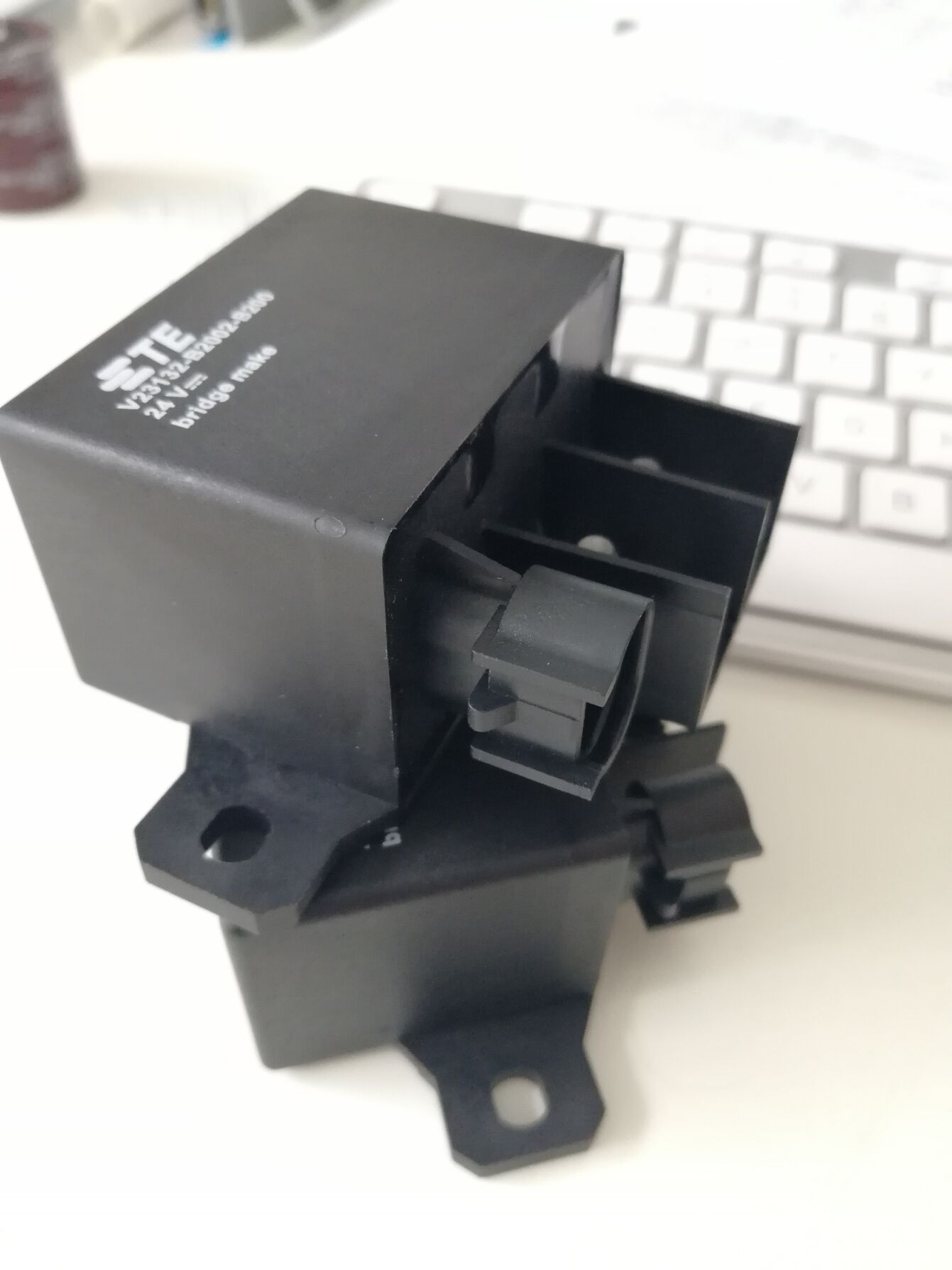

1-1393315-1

  • Category:Relays
  • Product Name:High current automotive relays
  • Manufacturers:TE Connectivity Ltd
  • Production Batch Number:17+
  • Encapsulation:Relays
  • Stock Status:There is stock
  • Stock Quantity:320
  • Minimum order quantity: 1
  • Details:Click here to find a PDF of 1-1393315-1
  • Click Request a quote
Contact usOnline customer service1 Online customer service2 Click Send email
  • Product introduction

Product type characteristics



  • Product Type : Relays

  • Product Category : Relays - Automotive high current relays

  • Relay Type : HCR 150 type high current relay

  • Product Category : Electromechanical relays

  • Product Name : High current automotive relays

Electrical characteristics



  • Terminal switch load (min) : 1000mA @ 5VDC

  • Terminal limit disconnect current (A): 300

  • Rated voltage (VDC): 24

  • Rated coil voltage (VDC): 24

  • Coil excitation system : Monostable, DC

  • Coil resistance (Ω): 141

  • Terminal limit continuous current (A): 180

  • Terminal limit closing current (A): 300

  • Turn on the inter-terminal insulation initial dielectric (VRMS): 1000

  • Coil Power Rating (DC) (mW): 4100

  • Initial dielectric for coil/terminal insulation : 500 – 1000 V

  • Terminal-to-coil insulation initial dielectric (VRMS): 1000

  • Rated current (85°C) (A): 130

Subject characteristics



  • Weight: 220 g [ 7.766 oz ]

Contact characteristics



  • Terminal substrate : AgSnO2

  • Terminal current class : >50A

  • Terminal arrangement : 1 Form X (NO, bridging)

  • Terminal Type : Screw terminals

Mechanical accessories



  • Installation Type : screw

size



  • Width: 40 mm [ 1.575 in ]

  • Height Class (Mechanical) : 40 – 50 mm

  • Length: 74.2 mm [ 2.92 in ]

  • Length class (mechanical) : >60mm

  • Height: 45 mm [ 1.772 in ]

  • Width class (mechanical) : 30 – 40 mm

Usage environment



  • Environmental Protection Category : RTIII

  • Ambient temperature : 105 – 125°C

  • Ambient temperature (max) : 125 °C [ 257 °F ]

other



  • Mounting bracket : With

  • High Power Relay (>75A): be

and1-1393315-1Related ICs are:


Model Manufacturers lot number encapsulation illustrate
1-1393315-1 TE Connectivity Ltd 17+ Relays High current automotive relays
