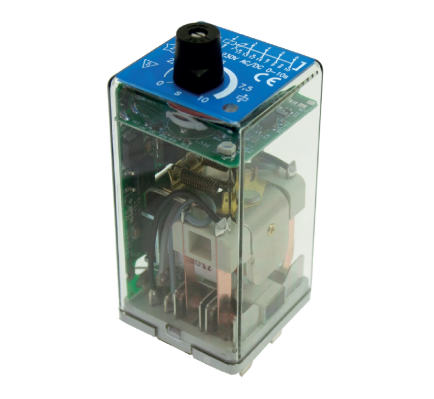

TDE4-U204-C
Product images are for illustrative purposes only
Product details are welcome upon request

TDE4-U204-C

  • Category:Time relay
  • Product Name:Instantaneous relay + relay seat
  • Manufacturers:Mors Smitt France Sas
  • Production Batch Number:2020+
  • Encapsulation:Relays
  • Stock Status:There is stock
  • Stock Quantity:1000
  • Minimum order quantity: 1
  • Details:Click here to find a pdf of the TDE4-U204-C
  • Click Request a quote
Contact usOnline customer service1 Online customer service2 Click Send email
  • Product introduction

TDE-U204-C  TDE-U204-C   TDE4-U204-C  EA103BF


DB4, Timing Relay Delay, 4 C/O, 10A

Delay on timer relays for heavy-duty, demanding applications, AC and DC voltage switching, resistive and/or inductive loads.
  • Insert the power relay
  • Smith-style pins
  • 4 C/O contacts
  • DC and AC coils
  • Flash obstacles
  • 2 LED indicators
  • Cadmium-free contacts
  • Several time ranges are provided, see the datasheet
  • Adjustable knob
  • Integrated "quick lock" retention clip
