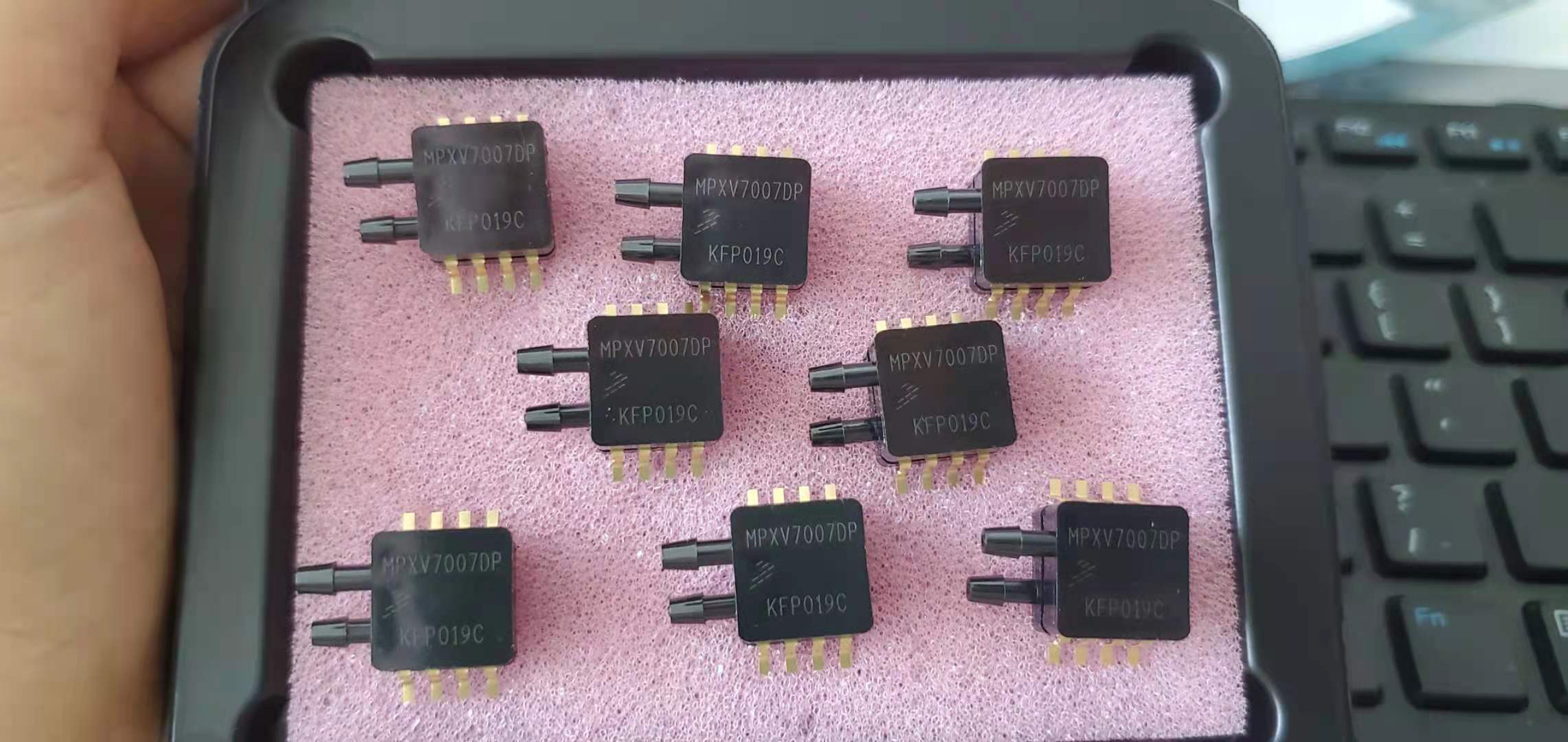

Product images are for illustrative purposes only
Product details are welcome upon request

MPXV7002GP

Category:sensor
Product Name:Integrated pressure sensor
Manufacturers:FREESCALE
Production Batch Number:20+
Encapsulation:DIP-8
Stock Status:There is stock
Stock Quantity:10000
Minimum order quantity: 1
Details:

Product introduction

MPXV7002GP Presión integradasensor

The MPXV7002 series of small form factor (SOP) piezoresistive sensors is the latest monolithic silicon pressure sensor that can be used in a wide range of applications, especially those using microcontrollers or microprocessors with A/D inputs. This patented single-element sensor combines advanced micromachining techniques, thin-film metallization, and bipolar processes to provide an accurate, high-level analog output signal proportional to the pressure being measured.

The MPXV7002 can be used to measure both positive and negative pressure. In addition, instead of the conventional 0V with a specific 2.5V zero offset, the new series of sensors allows to measure pressures up to 7 kPa per port and is also suitable for vacuum sensing (see Transfer Functions in the datasheet for details).

characteristic

5.0% maximum error from 0 to 85°C
Suitable for microprocessor- or microcontroller-based systems
Thermoplastic (PPS) surface mount encapsulation
Temperature compensation ranges from 10 to 60°C
Patented silicon shear strain gauge technology
Differential and gauge pressure configurations are available
Suitable for automotive and non-automotive applications

andMPXV7002GPRelated ICs are:

Model	Manufacturers	lot number	encapsulation	illustrate
MPXV7002GP	FREESCALE	20+	DIP-8	Integrated pressure sensor
