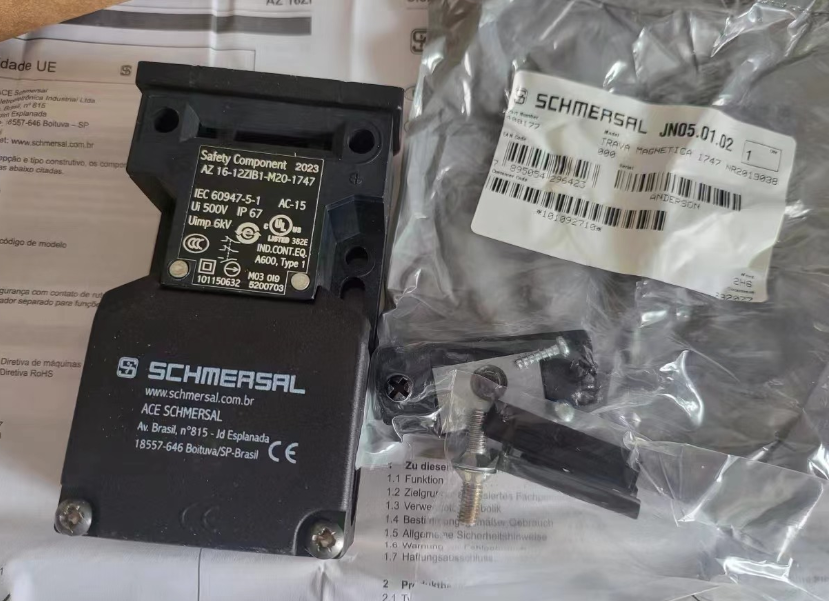

AZ16-12ZIBI-1747-M20

• Product introduction

AZ16-12ZIBI-1747-M20

Destination and use
The AZ 16zi and AZ 20zi safety switches comply with category 2 of the test principles for positive opening position switches for
Safety function BG-GS-ET 15 of the German employers' liability insurance associations. They are used on protective grilles, hoods and doors, which must be closed to ensure the required operational safety. In addition, the AZ 20zi can be used for accelerated actuations (up to max. 40 m/s2).
Hint
The electrical connection may only be made by authorized personnel
be in progress.
We will be happy to send you the declaration of conformity in accordance with the Machinery and Low Voltage Directive on request or can be contacted in the
Internet. For further technical information, please refer to the Schmersal General Catalogue.
Destination and use
The safety switches AZ 16zi and AZ 20zi conform to category 2 of
the testing regulations for positive break position switches with
safety function according to BG-GS-ET-15 of the German Berufsgenossenschaften (relevant authorities). They are designed for hinged and swivelling protective covers, flaps and doors, to ensure the
required operation safety. Additionally, the AZ 20zi can be used for
accelerated actauation (max. 40 m/s2).
