EE-SPX303
-
所属类别：光电开关
-
产品名称：Optical Sensor (Switch) Transmissive / Slotted Interrupter; No. of Channels:1; Optocoupler Output Type:Transistor; Input Current Max:50mA; Operating T
-
厂商：欧姆龙
-
生产批号：10+
-
封装：NA
-
库存状态：有库存
-
库存量：6000
- 最低订购量：1
- 详细资料：
-
EE-SPX303Optical Sensor (Switch) Transmissive / Slotted Interrupter; No. of Channels:1; Optocoupler Output Type:Transistor; Input Current Max:50mA; Operating Temperature Range:-10 C to +55 C; Voltage Rating:24V RoHS Compliant: Yes
Groove type photoelectric switch EE-SPX303 EE-SPX403
Long-range type with a detection distance of 13mm.
It can also be used in places where there is interference from external light.
It has an illuminated display light for easy adjustment and action confirmation.
It can also be connected to a program controller.
The connection method is a connector type for easy maintenance.
The power supply voltage is DC12~24V.
| General indicators |
| Use ambient temperature |
When operating: -10~+55°C, when saving: -25~+65°C |
| Use ambient illuminance |
Illuminance of the surface of the light Incandescent lamp and sunlight: 3,000 lx or less each |
| Frequency of responses |
100Hz or higher |
| Control output |
NPN voltage output: Load supply voltage: DC12~24V, load current below 80mA; Residual voltage is less than 1.0V (when the load current is 80mA); Residual voltage 0.4V or less (at load current 10mA) |
| Current consumption |
The average value is less than 15mA, and the front-end value is less than 50mA |
| Supply voltage |
DC12~24V±10% pulsation (p-p) less than 5% |
| Display light |
GaP red LED (maximum luminous wavelength 700nm) |
| Light source (luminous wavelength) |
GaAs Infrared Light Emitting Diode (Pulsed Light) (940nm) |
| Differential distance |
Less than 0.05mm |
| Standard detection objects |
2. 2× Opaque objects above 0.5mm |
| Detection distance |
13mm (groove width) |
| Connection |
Connector type (soft brazing is not possible) |
| Impact (Durable) |
500m/s2 3 times in each direction of X, Y and Z |
| Vibration (durable) |
10~55Hz up and down amplitude 1.5mm X, Y, Z directions 2h |
| Use ambient humidity |
When acting: 5~85%RH, when saving: 5~95%RH |
| quality |
About 3g |
| Protect the structure |
IEC specification IP50 |
| Material |
polycarbonate |
Notes:
请不要在超过额定的使用范围和环境下使用。
布线时
连接是采用接插件方式,所以对端子(簧片)不能进行焊接。
端子(簧片)是焊接在传感器电路板上的,若直接焊接端子(簧片)的话可能导致内部连接脱落,从而引起故障,因此请勿进行端子(簧片)的焊接。
导线要使用比导线截面积0.3mm2粗的线,总长为2m以下。

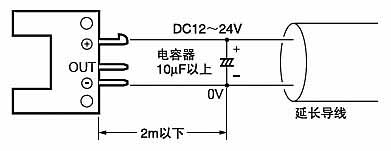

超过2m的配线场合,要如下图所示,在2m之内处放上10μF左右的电容器后,再进行配线。
(电容器的耐压为传感器的电流电压×2倍以上)。
Installation method:

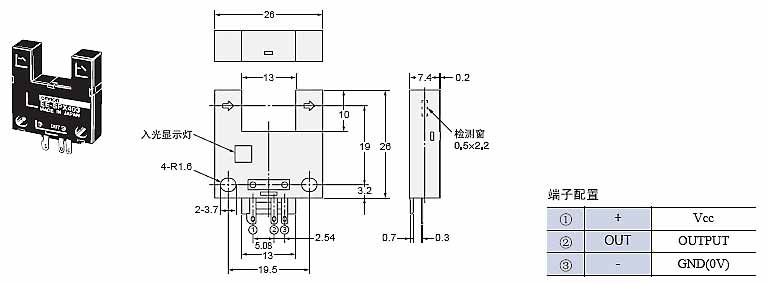

外形尺寸(单位:mm)
Wiring method
输出回路
