KPSE06F14-5SA206

• Product introduction

KPSE06F14-5SA206  CONN PLUG FMALE 5POS GOLD CRIMP

Product description

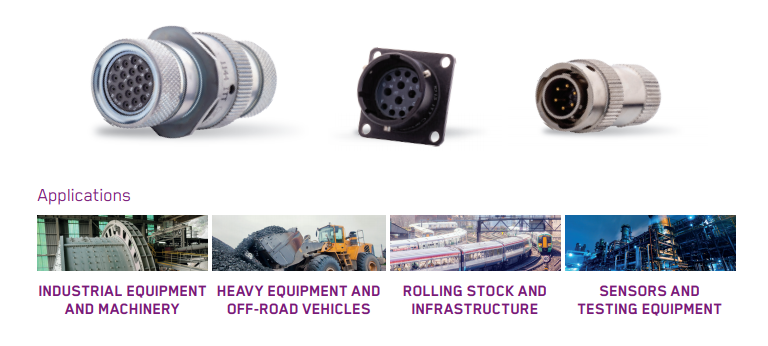

Cannon's KPSE miniature circular connector design is comparable to the specifications of the MIL-DTL-26482 (formerly MIL-C-26482), featuring positive three-point bayonet coupling, five-keyway polarization, and high insertion arrangement contact density. The KPSE series are high-performance crimp connectors with a "clip-in" contact and insulator design optimized for rapid assembly and high-volume production environments. KPSE connectors are intermectable with most MIL-DTL-26482 and VG95328 compliant connectors and accessories. These highly engineered, rugged connectors are designed for durability and reliability in harsh environment applications such as military vehicles and helicopters, industrial transportation, and commercial aerospace entertainment systems.
features

Bayonet couplings ensure fast and reliable fit/removal.
Suitable for harsh environments
High contact density
Press-to-touch contacts are available
Application/Market: Defense, industry, transportation
Shape: round
SHELL STYLE： Wall mount socket, cable connection socket, box mount socket, in-line shield, card nut socket, 90° angle plug, pass-through partition socket (KPT only)
Durability: 500 plugging cycles
Power and signal in the same layout: be
Contact/Termination: corrugation
Electrical parameters

Operating voltage: 1000 VAC
Current Rating: 23A
Number of signal contacts (MIN/MAX): 2-61
GAUGE WIRE SIZE： 16-24 AWG
environment

Seal: environmental
Operating temperature: -55 ° C to + 125 ° C
