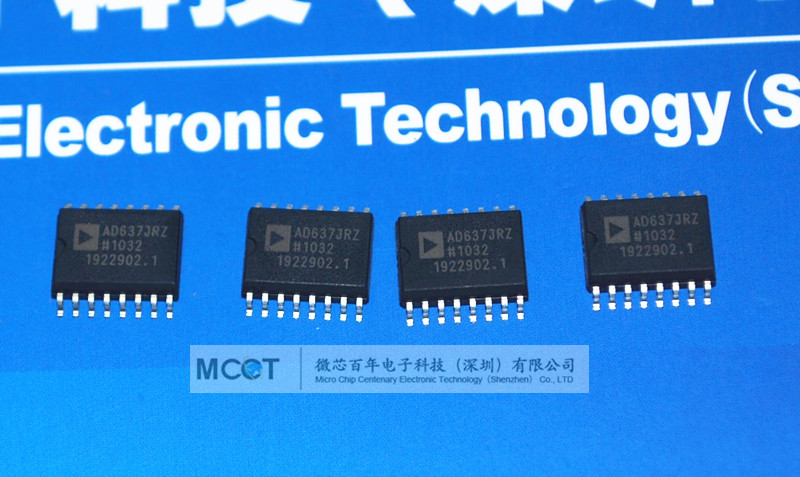

AD637JRZ high-precision DC converter is produced by ADI original factory, using SOP package, batch number 11+, Microchip century-old integrated circuit warehouse currently has inventory Shenzhen warehouse existing inventory of 220, Hong Kong warehouse has a large number of stock can also do long-term order, the price is excellent, please consult a sales representative
1：￥80
100：￥75
1000：￥65
5000:￥62
The AD637 is a complete, high accuracy, monolithic RMS-to-DC converter that calculates true rms values for any complex waveform. It offers unprecedented RMS-to-DC converter ICs and discrete precision, bandwidth and dynamic range comparable performance to modular technology. Measurement compensation of crest factor signals in AD637 license with crest planning
-
High precision
0.02% maximum nonlinearity, 0 V to 2 V rms input
0.10% additional error crest factor 3
-
compute
True valid value
square
root mean square
absolute value
- Output dB (60dB range)
-
Wide bandwidth
8 MHz 2 V rms input
600 kHz at 100 mV RMS
-
Chip select/power down function allows
Simulate three-state operation
Quiescent current reduction from 220 mA to 350μA
- 14-lead SBDIP, 14-pin low-cost CERDIP package, 16-lead SOIC_W
